Geotab DIG Integration

Step 1: Geotab registering Third-Party Devices

{For dealer account administrators ONLY}

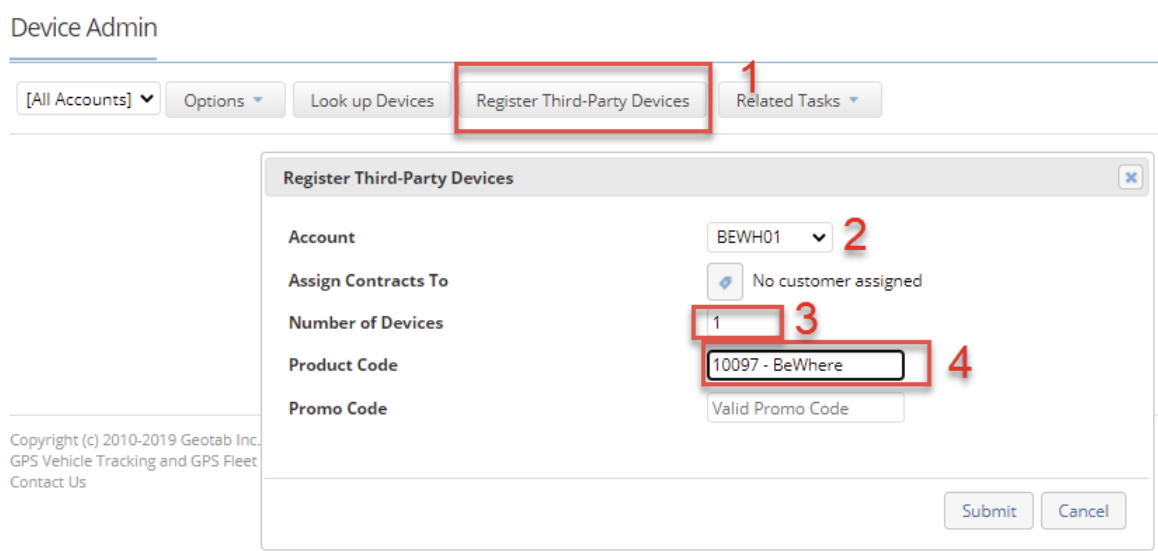

Please follow the steps as shown in the image below, to register third party devices in Myadmin Geotab.

  • Go to Device Admin page and click on “Register Third-Party Devices” button.
  • Select account from the dropdown this device should be assigned to
  • Specify how many 3rd party devices need to register i.e., 1 or more.
  • Product code for all devices (except mini) is 10097- BeWhere, and for BeMini Geotab Product Code is 10270 -BeWhere BeMini.
  • Click on “Submit” button to execute the operation.

Step 2: Assigning Geotab Serial Numbers

{For dealer account administrators and/or Bewhere administrators}

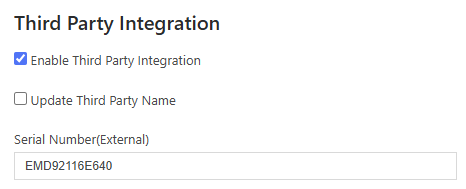

Once logged in BeWhere portal; https://portal.bewhere.com. Mass updating via import tool is recommended, otherwise go to Beacons list, edit each beacon to assign Geotab Serial number and Enable Third Party integration

Note: Once this step is important that is done ahead of time to make sure each device is linked to a Geotab Third party device Serial Number.

Step 3. Geotab Import devices into vehicles.

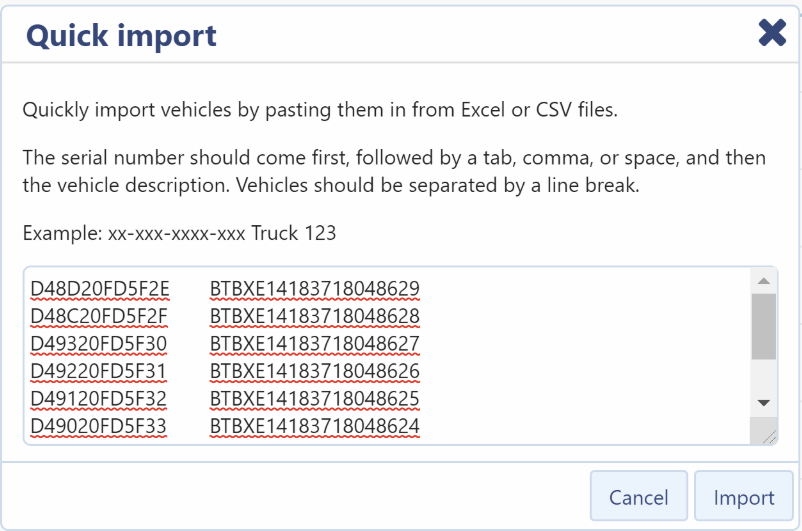

From Geotab portal go to Vehicles -->Add -->Quick Import and paste all Third-party serial numbers along with the vehicle name per Geotab requirement.

Step 4: Enable Third Party Integration

{For BeWhere administrators / Partner dealers users}

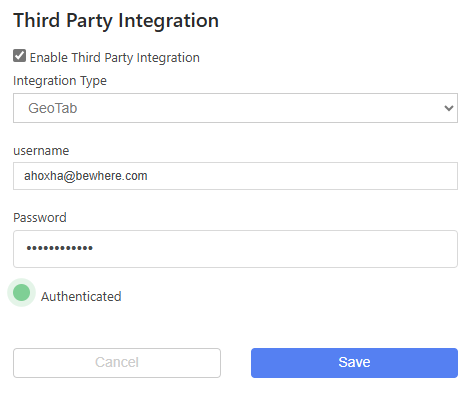

From account list right-click and “Edit” account and fill out the form below with the correct information

Note: the username and password in this box should be a myadmin user with API access permission. This is very important requirements otherwise the integration will not work.

Save the changes.

Geotab DIG Data mapping

The following section describes BeWhere's MIoT device data and how it is mapped to Geotab Data Fields in Records and Engine Measurements

SerialNo;
DateTime;
isGpsValid;
latitude;
longitude;
speed;

RSSI              (46)
Battery           (5)
Direction         (238)
Altitude          (41)
Satellites        (48)
HDOP              (47)
Temperature       (6)
Humidity          (293)
Pressure          (292)
Motion            (14)
Light             (318)
Ignition_Status   (149)    --BeSol (Motion Start/Stop) / BeWired-BeMini (Ign On/Off)
Engine_Run_Time   (210)    --BeWired - BeMini (Ign On-Off)
Odometer          (53)     --BeSol / BeWired / BeMini
External Battery  (78)     --BeWired / Battery voltage from 12 V (78)


Reefer Temp Z1    (214)    --BeWired with Temp Probes
Reefer Temp Z2    (215)    --BeWired with Temp Probes
Reefer Temp Z3    (216)    --BeWired with Temp Probes
Reefer Temp Z4    (217)    --BeWired with Temp Probes
