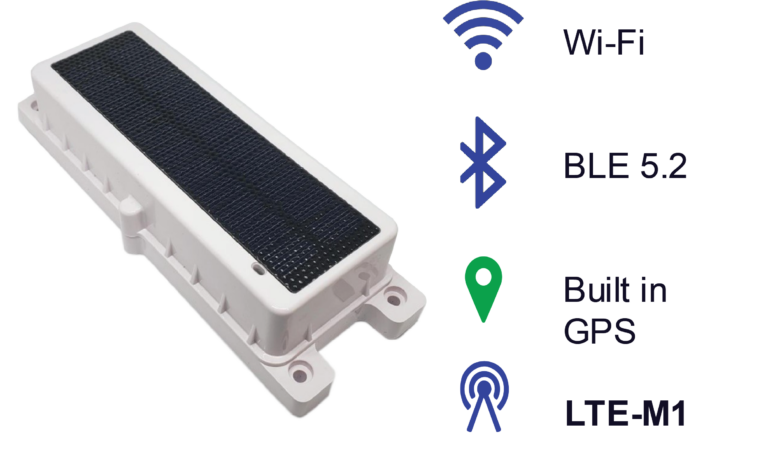

BeSol+ (B4-MIOT-MR BSP) Solar-Powered Device

BeSol+ is an upmarket device offering based on one of our most popular low-power 5G asset trackers, the BeSol. It comes with a larger rechargeable battery and solar panel to provide higher frequency updates for use-cases that demand it.​

The BeSol+ maintains our existing suite of sensors and further incorporates indoor location using Wi-Fi/BLE 5.2. It also includes a Bluetooth transceiver that functions as a BLE Gateway reader, enabling the integration of BLE Beacon Tags and Sensors. Furthermore, the device is housed in a ruggedized enclosure, enhanced to IP69K standards.

Image title

Features and Benefits

  • Key features

    • Networks: LTE-M1 / NB-IoT NB1/NB2
    • Outdoor Location: GNSS
    • Indoor Location: Wi-Fi / BLE 5.2​
    • IP69K Rugged and Dust / Water-proof enclosure​
    • Motion tracking, triggering updates​. Real-time tracking 5-15 minutes when in motion​.
    • Tampering detection: Alerts for unauthorized movement or tampering
    • Configurable reporting and alerting
    • On-board sensors​
      • Temperature​
      • Humidity​
      • Pressure​
      • Light​
      • Accelerometer​

  • Benefits

    • Rechargeable long battery life (5+ years)
    • Easy to install​
    • Ultra-low power platform​
    • Low device cost ​
    • Low deployment cost ​
    • Track activity in/out of geozones​
    • Indoor location via Wi-Fi BSSID technology
    • Full coverage (available on 4G & 5G networks)

Image title

Technical Specifications​

General
Communication LTE CAT M1 / CAT NB1/NB2
Battery Built-in rechargeable Lithium-Ion battery 3.8 V nominal; 4.20±0.02V charge capacity, 7000 mAh capacity.
Operating Voltage 3.5 – 4.2 V;
500 cycles, the cycle life is the cycle times when the discharge capacity is about 70% of the rated capacity
Solar Powered EFTE Monocrystalline, 120mA solar panel.
Operating Bands Multi Region  Cat M1 /NB1/NB2
M1: LTE-FDD: B2/B3/B4/B5/B8/B12/B20/B28
NB1/NB2: LTE-FDD: B2/B3/B4/B5/B8/B12/B20/B28
North America & Europe: Cat M1
Australia: Cat M1
Brazil: NB1/NB2
Data LTE CAT M1 Packet Data (CoAP/UDP) / CAT NB1/NB2 Packet Data CoAP/LwM2M/UDP
SIM  4FF (nano SIM)
Location
GPS Receiver High accuracy Gen9 VT of Qualcomm (GPS, GLONASS, BeiDou, Galileo and QZSS).
Tracking & Navigation: –157 dBm Cold start: –146 dBm Hot start: –157 dBm
Accuracy: Position accuracy <3 m CEP-50
Wi-Fi Receiver For Micro-location purpose only.
Frequency: 2.4 GHz to 2.4835 GHz, Sensitivity: -70 dBm
Sensors
Sensor Temperature: [-40, +85]; Absolute accuracy ±0.5 °C
Humidity: Absolute accuracy ±3 %RH
Pressure: [300...1100 hPa], Absolute accuracy ±1 hPa
3-Axis Accelerometer Motion, Rotation
Light Tamper
Environmental Storage Temperature: -20 °C to +70 °C
Operating Temperature: -20 °C to +70 °C (batteries, extended 70 ℃- 80 ℃ for max 4 hrs)
Humidity: 95% R.H. @ 50℃ non-condensing
SAE J1455: Powered Thermal Cycle, Temperature Shock Resistance, Humidity-Temperature Cycle
Physical Dimensions: 165 mm x 70 mm x 39.5 mm
Weight: 0.8 lb
Compliance FCC, ISED, PTCRB
USA: AT&T (NO+FirstNet), FirstNet, T-Mobile, Verizon
Canada: Bell, Telus, Rogers

Battery Insights

This document describes the product specifications of rechargeable Li- polymer battery used with BeWhere’s BeSol+ asset tracker.

Characteristics

Item Spec Remark
Nominal Capacity​ 7000mAh@ 0.2 C5A Discharge​ Nominal capacity refers to the capacity of 0.2C5A​ discharge with 3.0V cut-off voltage, application cut-off voltage at 3.5V​
Cycle Life ~500 Times One cycle refer to one charge period and then one​ discharge period.​ The cycle life is the cycle times when the discharge capacity is about 70% of the rated capacity.​
Standard Charge 0.2C5A 0.2C5A CC (constant current) charge to Max Charge voltage 4.2V,then CV(constant voltage 4.2V) charge current decline to ≤0.01C.
Standard Discharge 0.2C5A 0.2C5A CC (constant current discharge to discharge cut-off)
Operating Temperature Charge*: 0 ℃~ +45℃ Discharge**: -20℃~ +60℃
Over Charge/Discharge Protection The battery pack has a protective circuit module to prevent over-charge/discharge for safety.

Notes

- *Recharging circuit has charge-protection above 45℃ for safety compliance and recharge current declines
when below freezing point.
- **Based on bench test/field test data and device has performed outside specifications
up to -35 ℃ without reducing operating performance

Performance​

Item Spec Remark
Number of messages​ 3500*​ From Max charge 4.2V to 3.5V app cut-off voltage​ (within 12 months including self-discharge) ​​
Charge time ~8hrs x 8 days​​ In ideal exposure, uninterrupted sunlight from fully drained to fully charged 4.2V. ​​

Field results
